Комплекты фрез для профилирования фасочной вагонки

Быстрый заказ

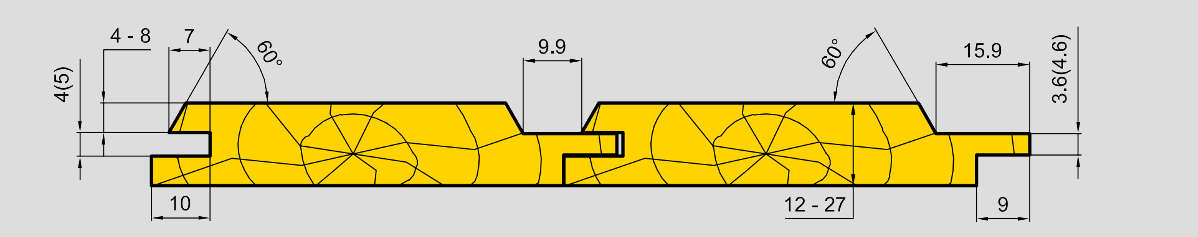

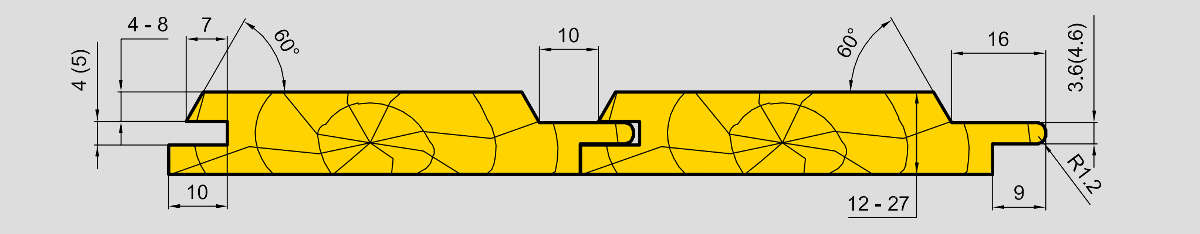

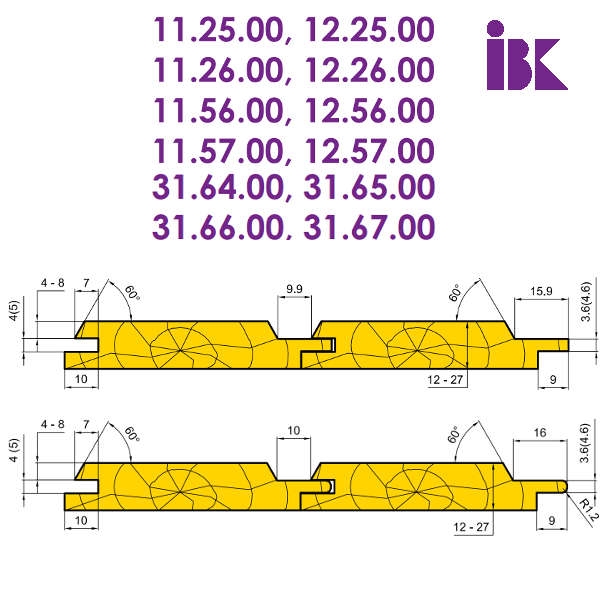

Фрезы насадные для профилирования фасочной вагонки

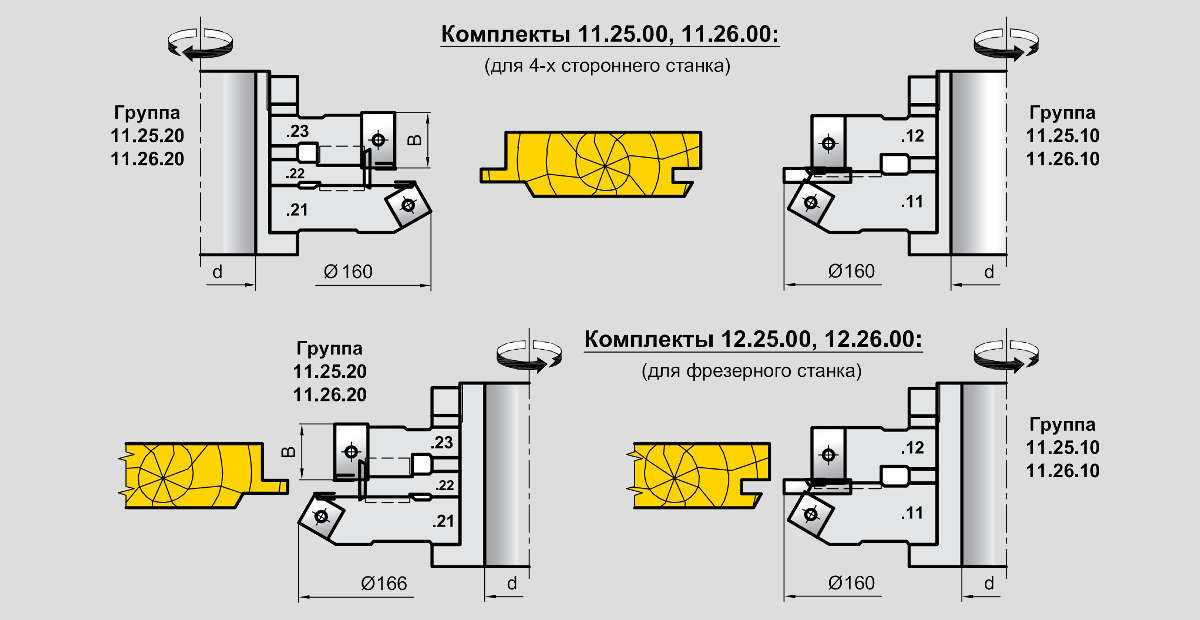

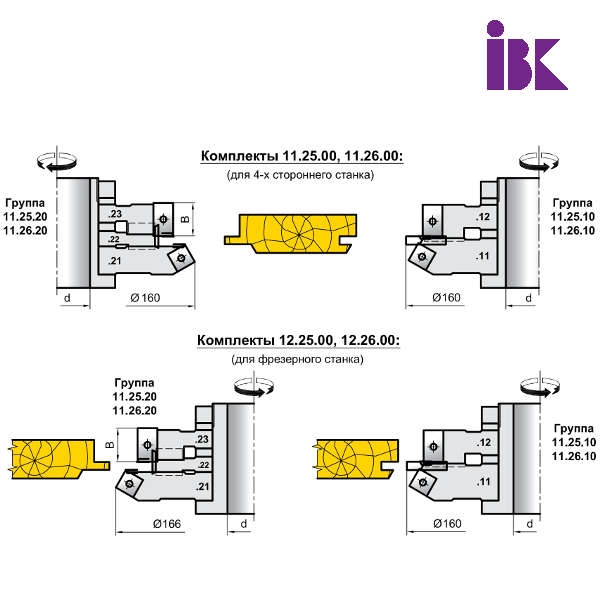

11.25.00, 12.25.00
11.26.00, 12.26.00

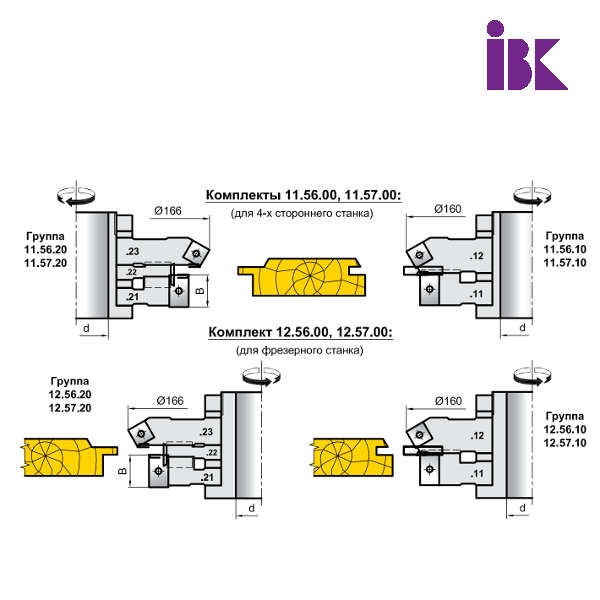

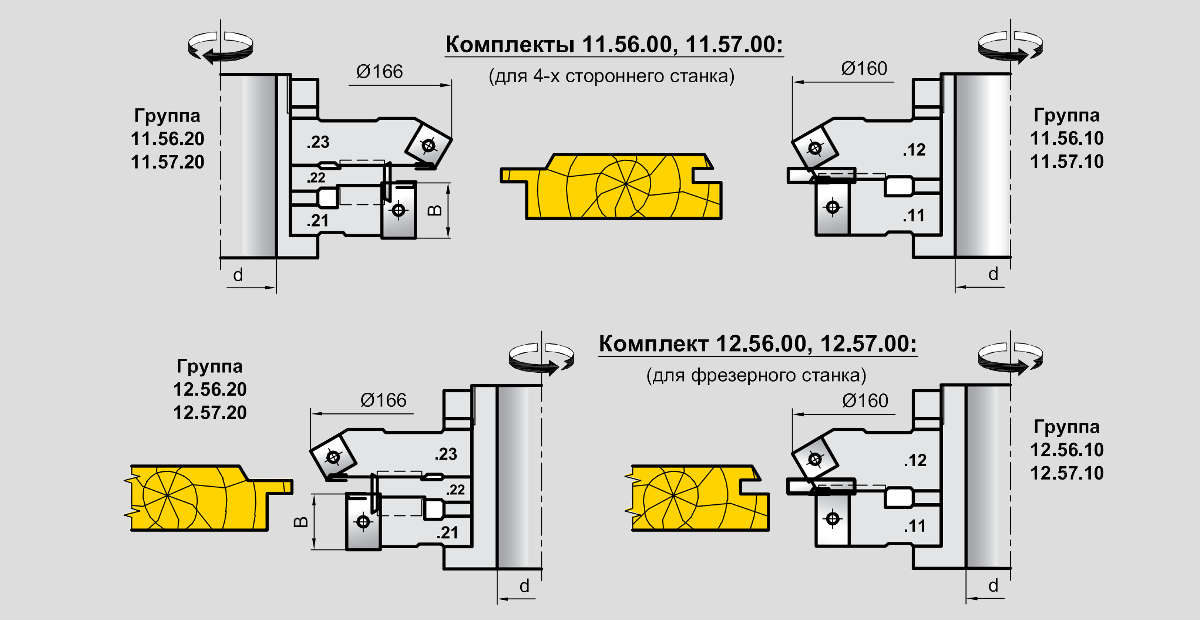

11.56.00, 12.56.00
11.57.00, 12.57.00


компл.

группы
Марк.
фрезы
D
mm
d
mm
B
mm

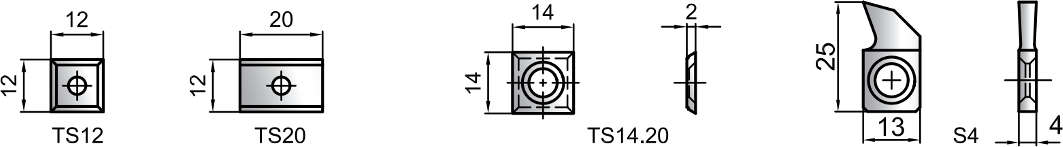

Ножі Z, V, S
Обозн. Кол. Обозн. Кол. Обозн. Кол.
11.25.00 11.25.10 11.25.11 160 30-50 10 TS12 2 TS14.20 2 S4 2
11.01.12 140 30-50 20 TS20 2
11.25.20 11.25.21 160 30-50 10 TS12 2 TS14.20 2
11.25.22 122 30-50 14 TS14.20 2
11.01.23 140 30-50 20 TS20 2 TS14.20 2
12.25.00 12.25.10 11.25.11 160 30-50 10 TS12 2 TS14.20 2 S4 2
11.01.12 140 30-50 20 TS20 2
12.25.20 12.25.21 166 30-50 10 TS12 2 TS14.20 2
12.25.22 122 30-50 14 TS14.20 2
12.01.23 140 30-50 20 TS20 2 TS14.20 2
11.26.00 11.26.10 11.26.11 160 30-50 10 TS12 2 TS14.20 2 S5 2
11.01.12 140 30-50 20 TS20 2
11.26.20 11.25.21 160 30-50 10 TS12 2 TS14.20 2
11.25.22 122 30-50 14 TS14.20 2
11.01.23 140 30-50 20 TS20 2 TS14.20 2
12.26.00 12.26.10 11.26.11 160 30-50 10 TS12 2 TS14.20 2 S5 2
11.01.12 140 30-50 20 TS20 2
12.26.20 12.25.21 166 30-50 10 TS12 2 TS14.20 2
12.25.22 122 30-50 14 TS14.20 2
12.01.23 140 30-50 20 TS20 2 TS14.20 2
11.56.00 11.56.10 11.56.11 140 30-50 20 TS20 2
11.56.12 160 30-50 10 TS12 2 TS14.20 2 S4 2
11.56.20 11.56.21 140 30-50 20 TS20 2 TS14.20 2
11.56.22 122 30-50 14 TS14.20 2
11.56.23 166 30-50 10 TS12 2 TS14.20 2
12.56.00 12.56.10 11.56.11 140 30-50 20 TS20 2
11.56.12 160 30-50 10 TS12 2 TS14.20 2 S4 2
12.56.20 12.56.21 140 30-50 20 TS20 2 TS14.20 2
12.56.22 122 30-50 14 TS14.20 2
12.56.23 166 30-50 10 TS12 2 TS14.20 2
11.57.00 11.57.10 11.56.11 140 30-50 20 TS20 2
11.57.12 160 30-50 10 TS12 2 TS14.20 2 S5 2
11.57.20 11.56.21 140 30-50 20 TS20 2 TS14.20 2
11.56.22 122 30-50 14 TS14.20 2
11.56.23 166 30-50 10 TS12 2 TS14.20 2
12.57.00 12.57.10 11.56.11 140 30-50 20 TS20 2
11.57.12 160 30-50 10 TS12 2 TS14.20 2 S5 2
12.57.20 12.56.21 140 30-50 20 TS20 2 TS14.20 2
12.56.22 122 30-50 14 TS14.20 2
12.56.23 166 30-50 10 TS12 2 TS14.20 2
Ножb Z, V, S

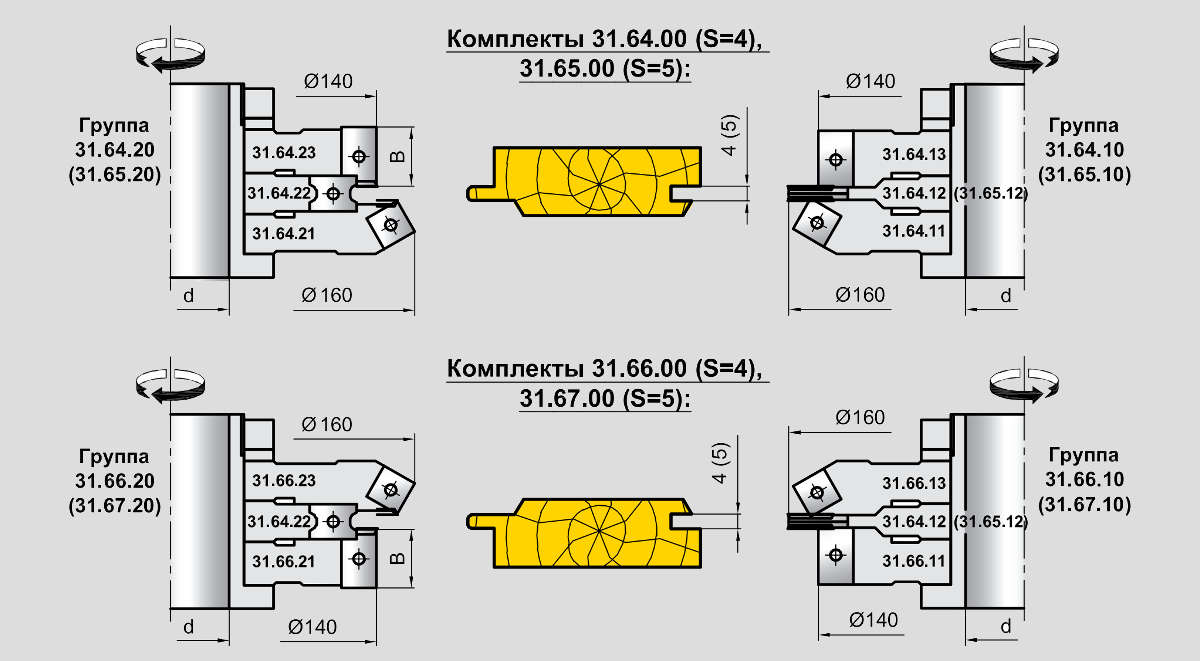

31.64.00, 31.65.00
31.66.00, 31.67.00

Обозначение
фрезы
D
mm
d
mm
B
mm
Ножи Z,V,S
Обозн. Кол. Обозн. Кол. Обозн. Кол.
31.64.11 158 30-50 10 TS12 3
31.34.12 160 30-50 4     14.12 6 S 195 6
31.64.13 140 30-50 20 TS20 3
31.64.21 160 30-50 10 TS12 3 14.20 3
31.64.22 126 30-50 12 31.64.22.01 3
31.64.23 140 30-50 20 TS20 3 14.20 3
31.65.12 160 30-50 5     14.12 6 S 245 6
31.66.11 140 30-50 20 TS20 3
31.66.13 158 30-50 10 TS12 3
31.66.21 140 30-50 20 TS20 3 14.20 3
31.66.23 160 30-50 10 TS12 3 14.20 3
31.74.11 158 30-50 22 31.74.11.01 3
31.74.21 160 30-50 22 31.74.21.01 3 14.20 3
31.76.13 158 30-50 22 31.76.13.01 3
31.74.23 160 30-50 22 31.43.23.01 3 14.20 3
