Фрезы для выборки четверти, пазов, для обработки шипов с фасками и кромок

Быстрый заказ

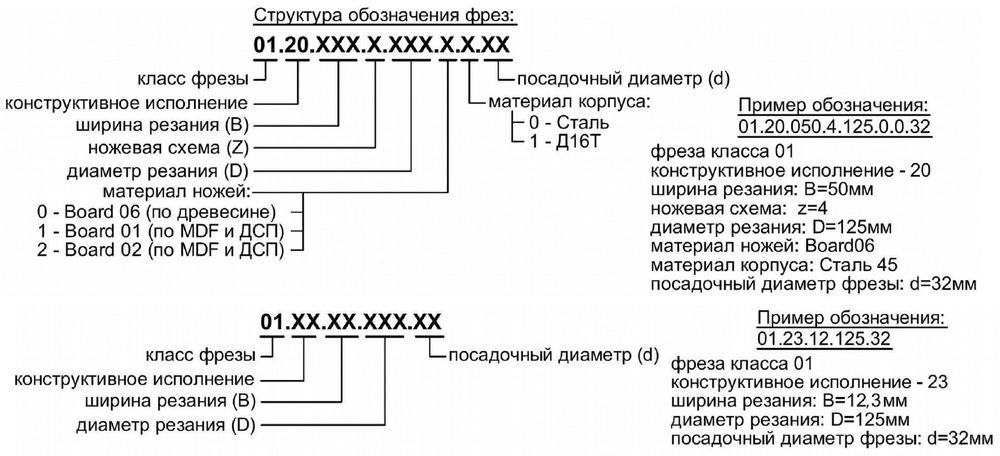

маркування фрез B mm D mm d mm ножі
Z V R C
мар  кіл мар  кіл мар  кіл мар  кіл
01.20.030.4.125.X.X.XX 30 125 30-50 TS30 4 TS14.20 2+2 - - - -
01.20.050.4.125.X.X.XX 50 125 30-50 TS50 4 TS14.20 2+2 - - - -
01.20.060.4.125.X.X.XX 60 125 30-50 TS60 4 TS14.20 2+2 - - - -
01.23/24.12.XXX.XX 12.3 125-280 30-50 TS12 3 TS14.20 3 - - - -
01.23/24.15.XXX.XX 15.3 125-280 30-50 TS15 3 TS14.20 3 - - - -
01.23/24.20.XXX.XX 20.3 125-280 30-50 TS20 3 TS14.20 3 - - - -
01.23/24.30.XXX.XX 30.3 125-280 30-50 TS30 3 TS14.20 3 - - - -
01.23/24.40.XXX.XX 40.3 125-280 30-50 TS40 3 TS14.20 3 - - - -
01.23/24.50.XXX.XX 50.3 125-280 30-50 TS50 3 TS14.20 3 - - - -
01.23/24.60.XXX.XX 60.3 125-280 30-50 TS60 3 TS14.20 3 - - - -
01.25.08.XXX.XX 8 125-280 30-50 TS7.5 3 TS14.20 3+3 - - - -
01.25.10.XXX.XX 10 125-280 30-50 TS9.5 3 TS14.20 3+3 - - - -
01.25.12.XXX.XX 12.6 125-280 30-50 TS12 3 TS14.20 3+3 - - - -
01.25.15.XXX.XX 15.6 125-280 30-50 TS15 3 TS14.20 3+3 - - - -
01.25.20.XXX.XX 20.6 125-280 30-50 TS20 3 TS14.20 3+3 - - - -
01.25.30.XXX.XX 30.6 125-280 30-50 TS30 3 TS14.20 3+3 - - - -
01.25.40.XXX.XX 40.6 125-280 30-50 TS40 3 TS14.20 3+3 - - - -
01.25.50.XXX.XX 50.6 125-280 30-50 TS50 3 TS14.20 3+3 - - - -
01.25.60.XXX.XX 60.6 125-280 30-50 TS60 3 TS14.20 3+3 - - - -
01.26/27.12.XXX.XX 12 160-280 30-50 TS12 3 TS14.20 3 - - S45 3
01.26/27.15.XXX.XX 15 160-280 30-50 TS15 3 TS14.20 3 - - S45 3
01.26/27.20.XXX.XX 20 160-280 30-50 TS20 3 TS14.20 3 - - S45 3
01.26/27.30.XXX.XX 30 160-280 30-50 TS30 3 TS14.20 3 - - S45 3
01.26/27.40.XXX.XX 40 160-280 30-50 TS40 3 TS14.20 3 - - S45 3
01.26/27.50.XXX.XX 50 160-280 30-50 TS50 3 TS14.20 3 - - S45 3
01.26/27.60.XXX.XX 60 160-280 30-50 TS60 3 TS14.20 3 - - S45 3
01.28.20.XXX.XX 20 160-280 30-50 TS20 3 - - - - S45 3+3
01.28.30.XXX.XX 30 160-280 30-50 TS30 3 - - - - S45 3+3
01.28.40.XXX.XX 40 160-280 30-50 TS40 3 - - - - S45 3+3
01.28.50.XXX.XX 50 160-280 30-50 TS50 3 - - - - S45 3+3
01.28.60.XXX.XX 60 160-280 30-50 TS60 3 - - - - S45 3+3
01.31/32.20.XXX.XX 20 160-280 30-50 TS20 3 TS14.20 3 - - S45 3
01.31/32.30.XXX.XX 30 160-280 30-50 TS30 3 TS14.20 3 - - S45 3
01.31/32.30.XXX.XX 40 160-280 30-50 TS40 3 TS14.20 3 - - S45 3
01.31/32.40.XXX.XX 50 160-280 30-50 TS50 3 TS14.20 3 - - S45 3
01.31/32.50.XXX.XX 60 160-280 30-50 TS60 3 TS14.20 3 - - S45 3
01.33.30.XXX.XX 30 160-280 30-50 TS30 3 - - - - S45 3+3
01.33.40.XXX.XX 40 160-280 30-50 TS40 3 - - - - S45 3+3
01.33.50.XXX.XX 50 160-280 30-50 TS50 3 - - - - S45 3+3
01.33.60.XXX.XX 60 160-280 30-50 TS60 3 - - - - S45 3+3
